JBL L42ms Music System

Specs & Downloads

Item#: JBLL42MSBLKEU

EAN: 1200130005299

JBL L42ms Music System

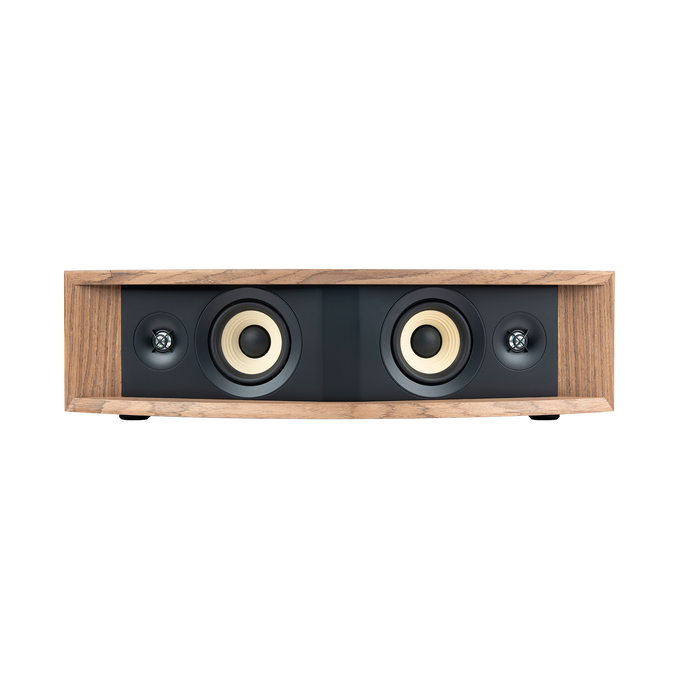

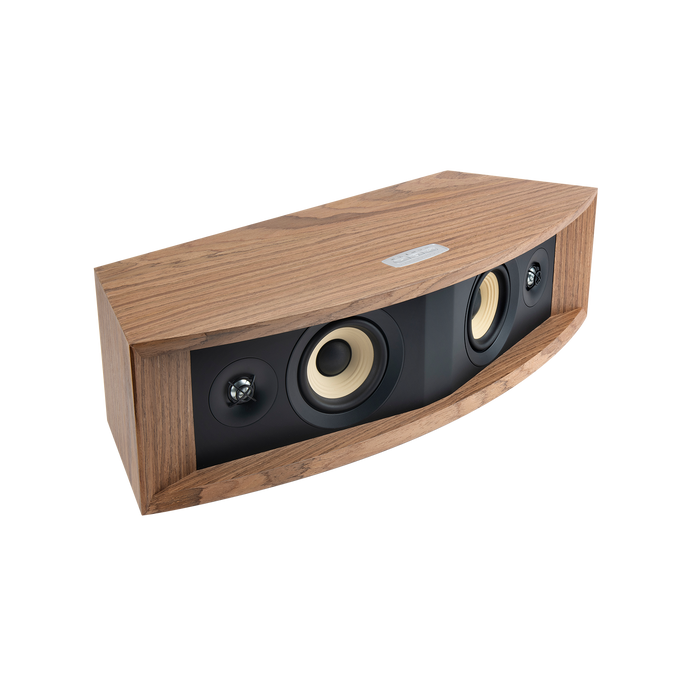

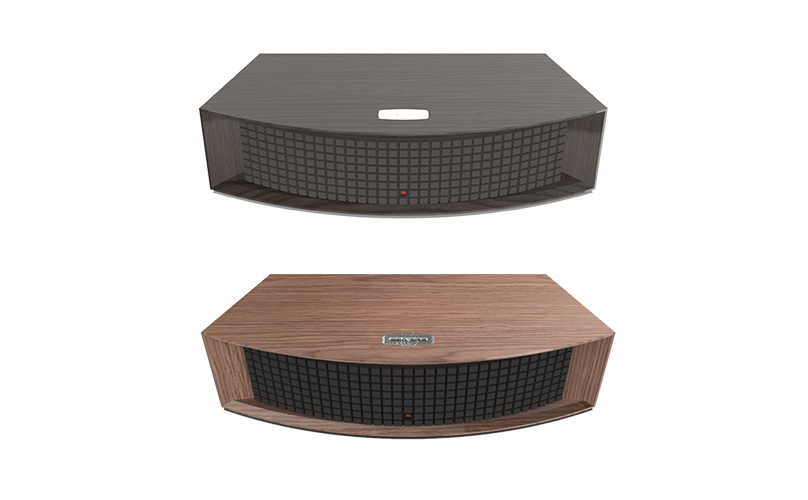

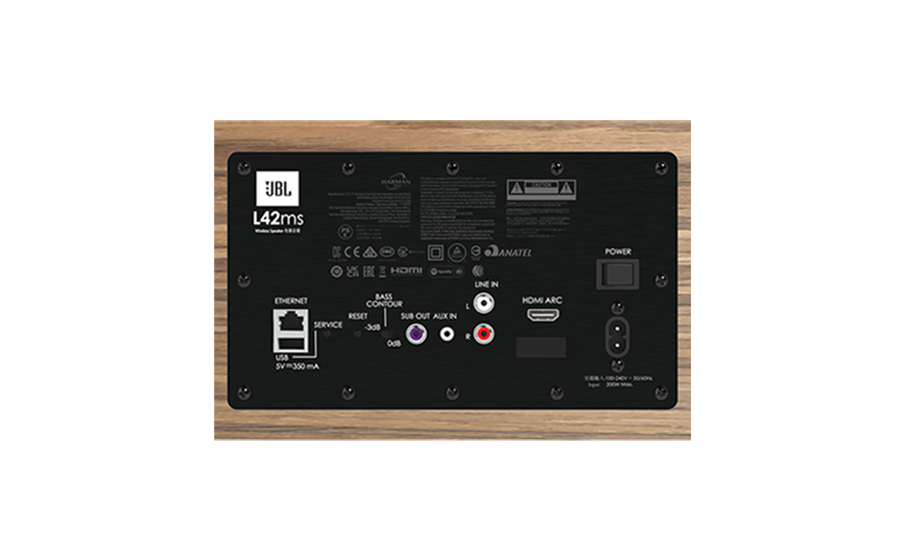

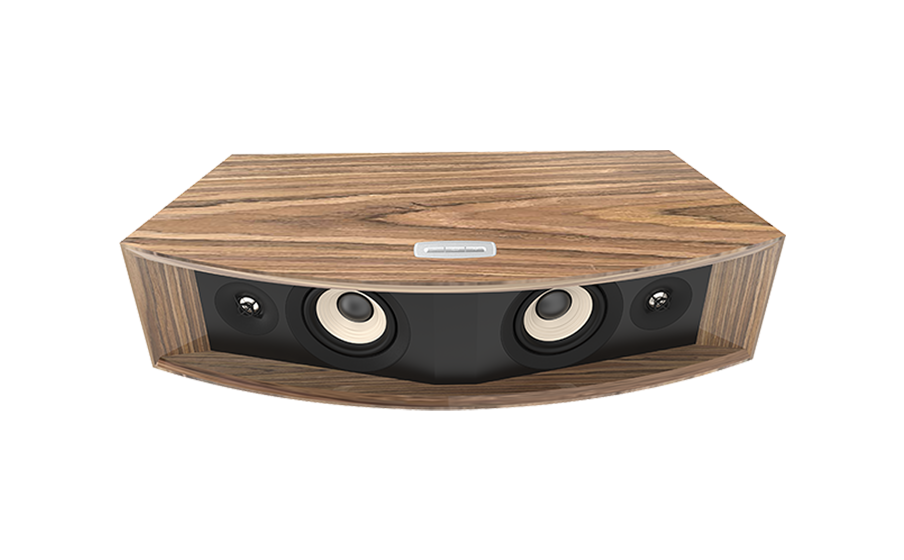

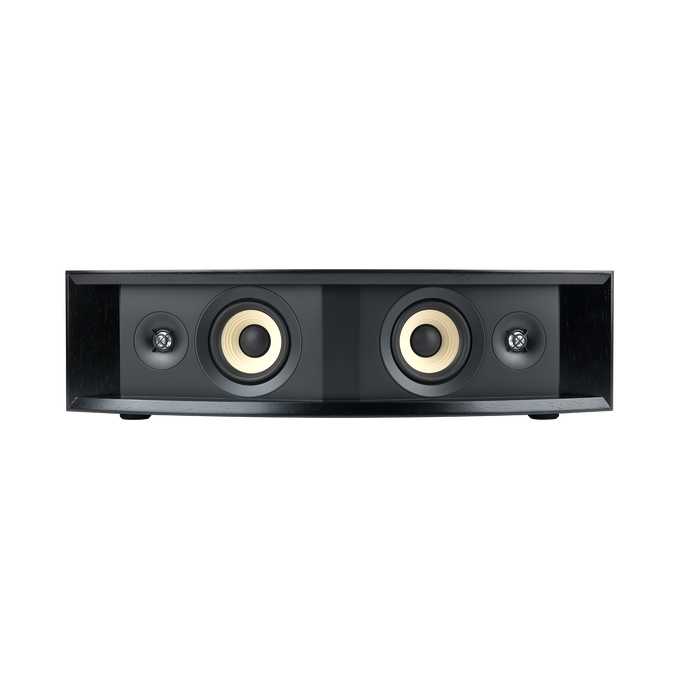

The JBL L42ms is an Integrated Music System that was designed to fit today’s entertainment lifestyle by showcasing the iconic sound of a pair of JBL loudspeakers in a single cabinet system. Behind the iconic JBL Quadrex grille are a pair of dual 4-inch (100mm) woofers and dual 0.75-inch (20mm) Aluminum dome tweeters with waveguides positioned to the left and right to create a wide and even sound-field. On the outside, the L42ms comes with a stylish curved grille, tapered side edges, and is available in the classic JBLreal wood veneer finishes of Black Walnut or Natural Walnut.Audio connections include two sets of analog stereo inputs (one pair RCA style and one 3.5mm input) along with one HDMI-ARC for connection to a TV with similar connection for audio signal and control. Additionally, the L42ms can play streamed content via a wired or wireless network connection via Spotify Connect, Apple Airplay2™, and Google Chromecast or connect to a device directly via Bluetooth. All audio signals are routed through an advanced DSP engine where the content is carefully contoured and output to the speakers via a four-channel amplifier delivering 75W RMS to each woofer and 25W RMS to each tweeter. The total system’s 200W RMS amplifier power can be controlled via a touch panel located on the cabinet top panel, included Bluetooth remote, or from one of many music or automation apps.Designed and Engineered at the Harman Center of Acoustics Excellence in Northridge, California, the L42ms leverages JBL’s past 75+ years of loudspeaker and electronic designs to deliver truly outstanding sound and convenience while outperforming most traditional component hi-fi systems in the process. With its incredible combination of style, size, and performance, there is simply nothing like the L42ms Music System.

General Specifications

Type

Compact Integrated Music System

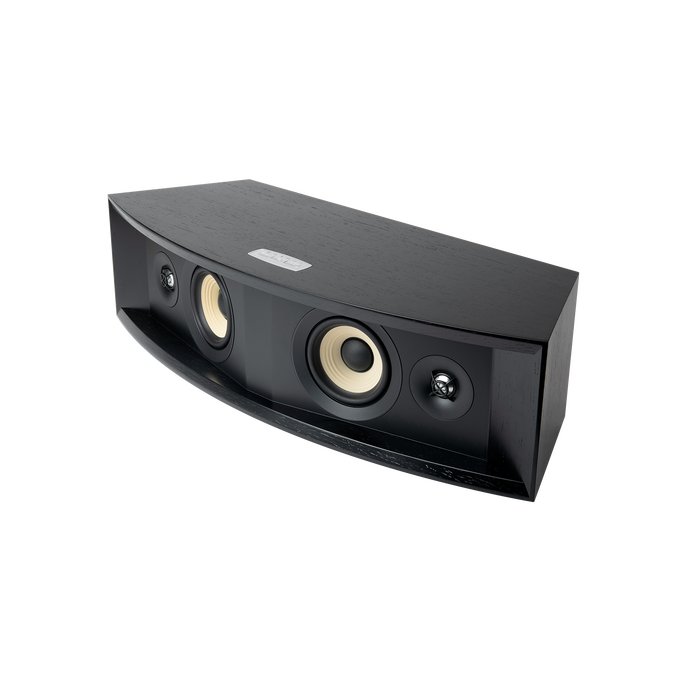

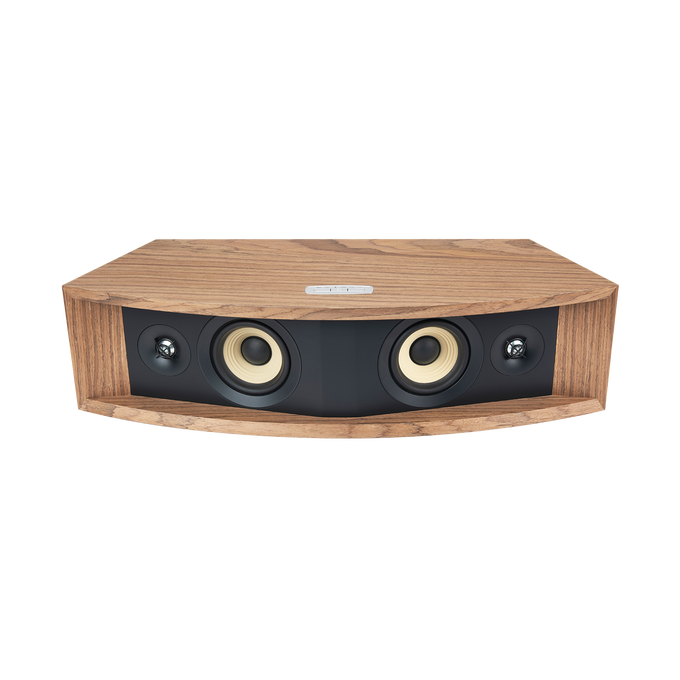

Low Frequency

Dual 4-inch (100mm) Pure Pulp white cone woofers

High Frequency

Dual 0.75-inch (20mm) Aluminum dome tweeters with waveguides

Amplifier Power

200W RMS Class D Total System Power, 4-Channel Amplification with 75W RMS to each woofer + 25W RMS to each tweeter Configured for Stereo Reproduction

Frequency Response

55Hz-25kHz (-6dB)

Crossover Frequency

5kHz

Maximum SPL

102dB @ 1m

Sound Controls Sound Controls Selectable Sound Field Expander (SFX)

Speaker placement boundary compensation

Subwoofer Output

Autosensing w/ Auto-engage of 80Hz High Pass Filter

Wireless Inputs Wireless Inputs Bluetooth 4.2

WiFi streaming

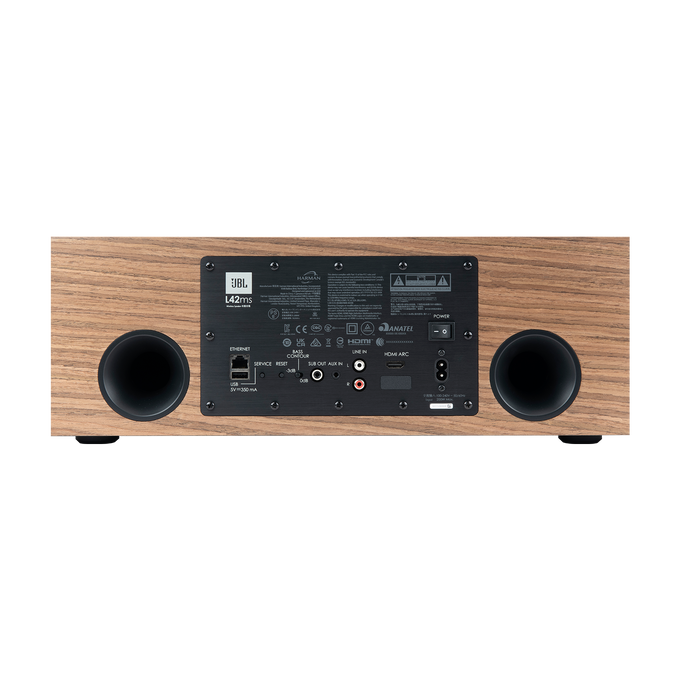

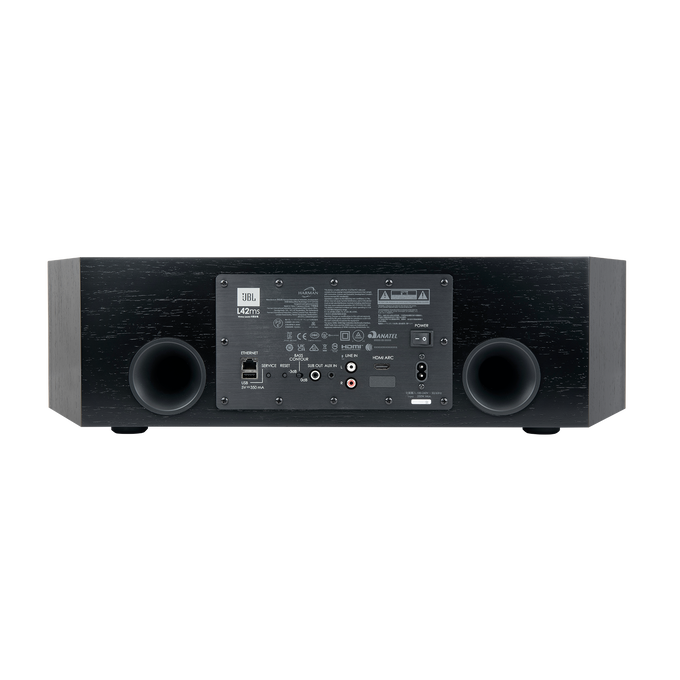

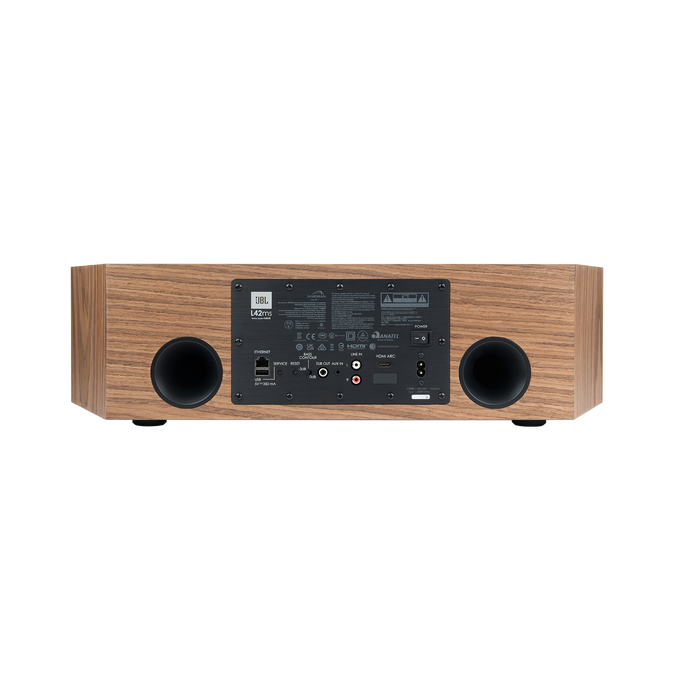

Wired Inputs Wired Inputs RJ-45 Ethernet

HDMI ARC

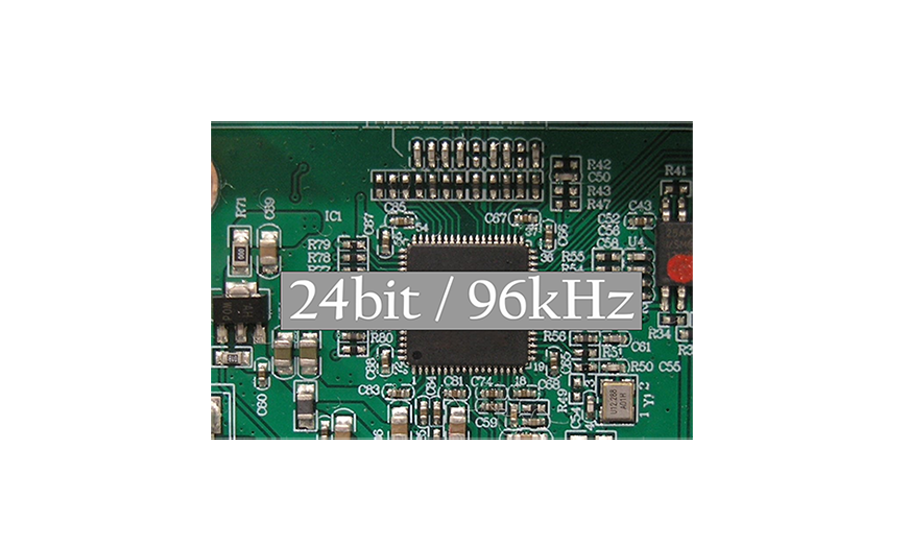

Supported Digital Audio Sample Rates (PCM 2CH) Supported Digital Audio Sample Rates (PCM 2CH) 24-Bit

Streaming

Bluetooth Audio

Version 4.2 Profiles, SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

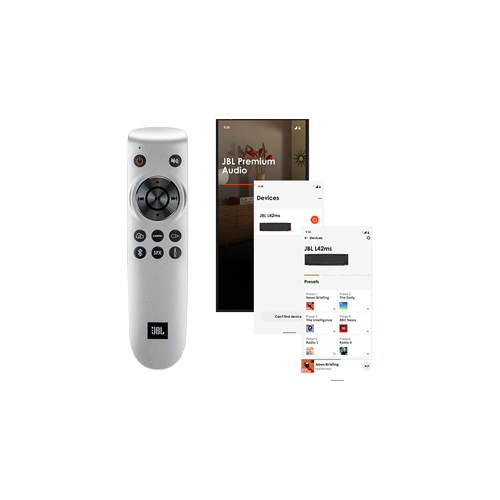

Remote Control Type

BTLE Wireless

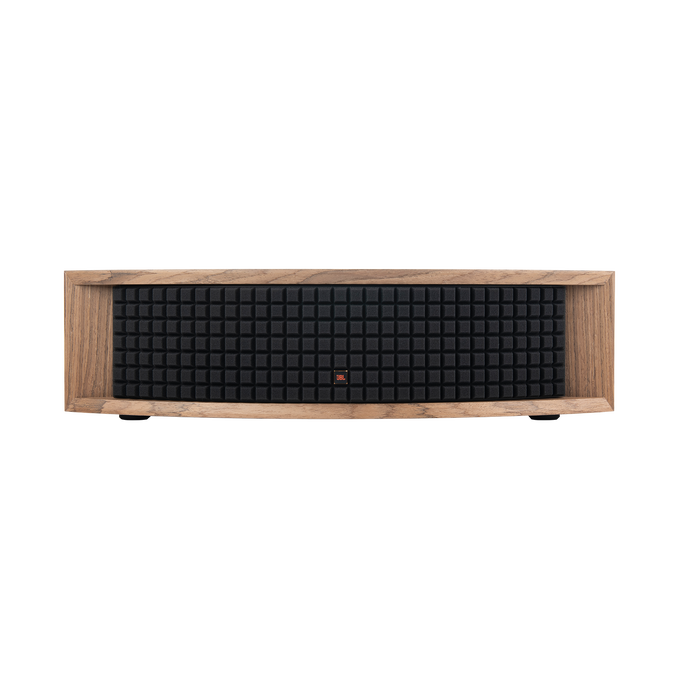

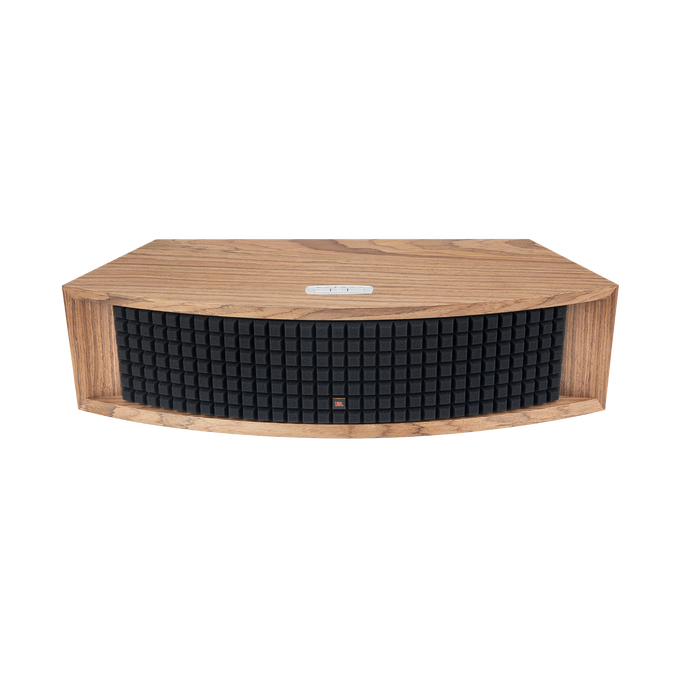

Grille

Black foam Quadrex grille

Enclosure

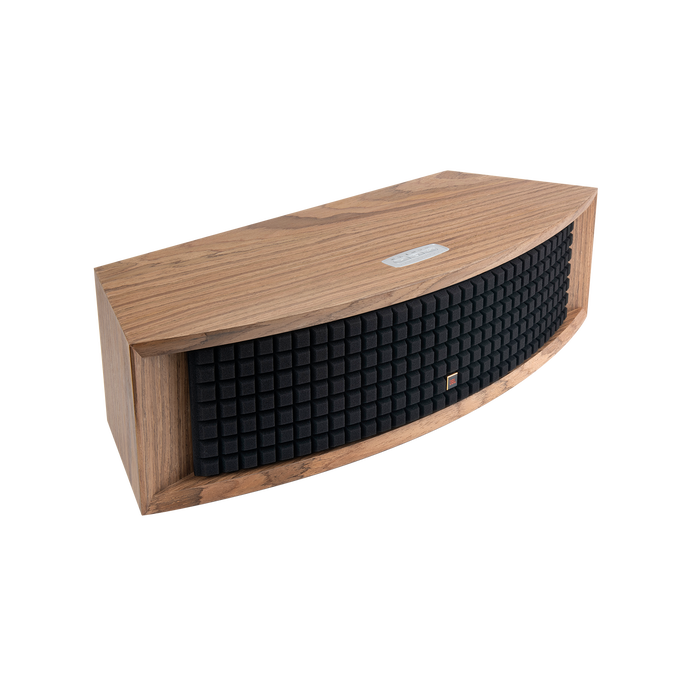

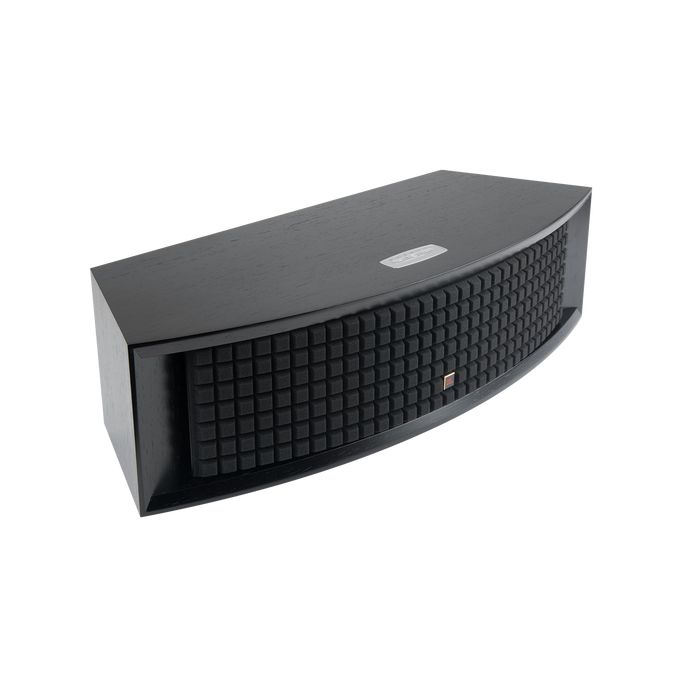

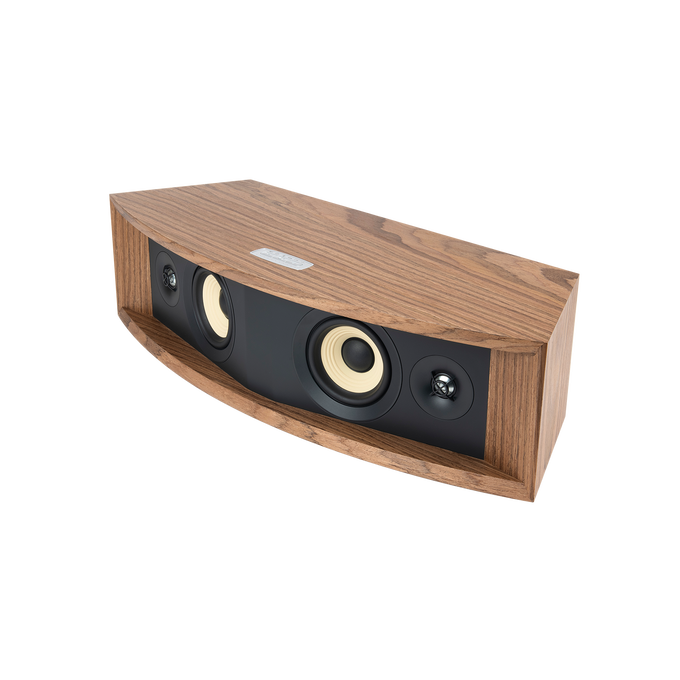

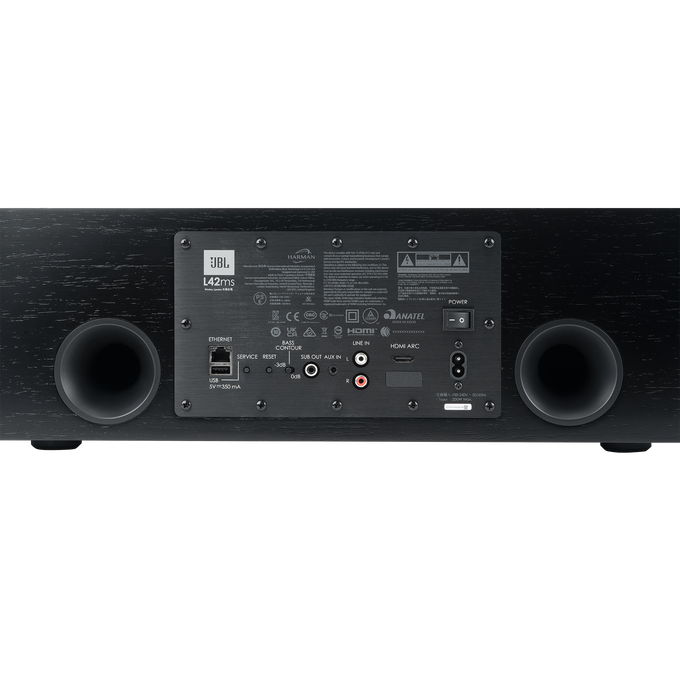

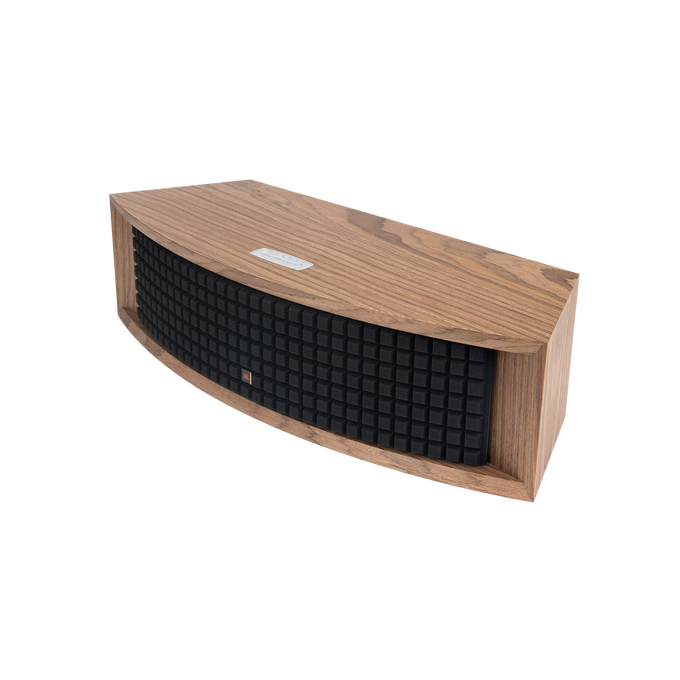

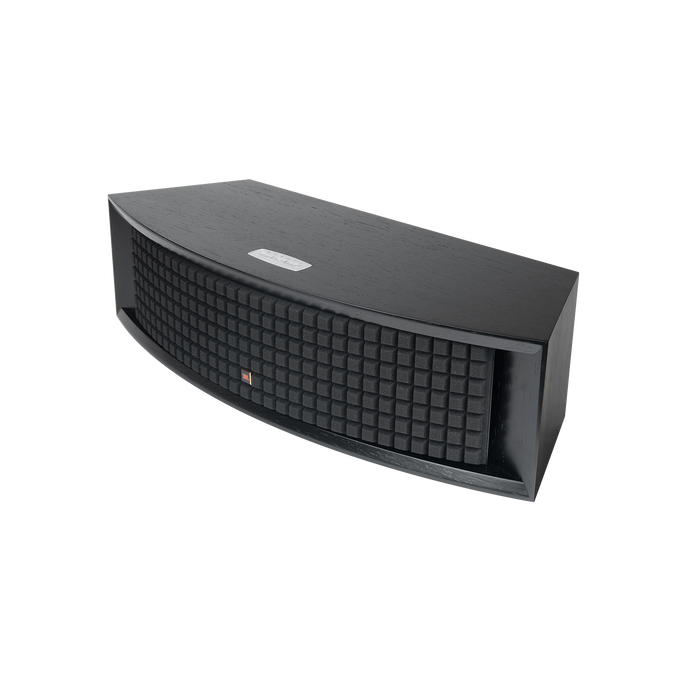

Front-ported tabletop style cabinet available in black walnut or natural walnut furniture-grade wood veneer

Net Speaker Dimensions (HxWxD)

6.4" x 24.3" x 9.2" (162mm x 617mm x 234mm)

Net Product Weight

26.3 lbs. (11.9kg)

Shipping Unit of Measure

Each

Gross Shipping Dimensions (HxWxD)

11.1” x 27.0” x 14.2” (283mm x 685mm x 360mm)

Gross Shipping Weight

34.3 lbs (15.6 kg)

AC Input Voltage

100 - 240 VAC (+/-10%), 50/60Hz

1x L42ms Integrated Music System

1x Speaker Grille

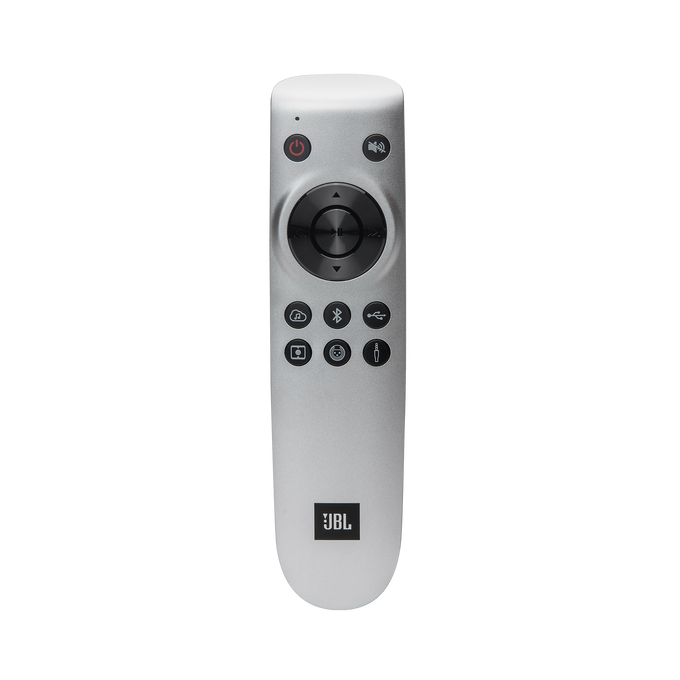

1x RF Remote

1x Safety Booklet

AC Power Cord(s) – Qty and Type Vary by Region
